brand new FOX EVO series

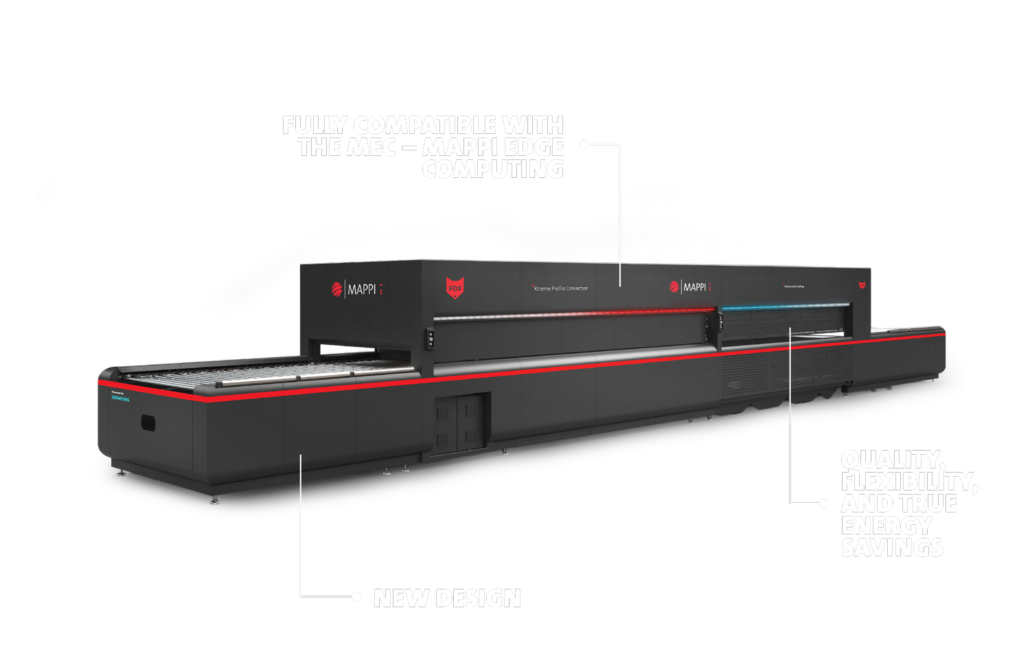

Quality is not enough if it doesn’t come with efficiency. In a production environment where every kilowatt, every minute, and every sheet counts, MAPPI presents FOX EVO — the evolution of its compact flat glass tempering furnace, designed to deliver optimal performance, maximum flexibility, and truly measurable energy savings.

FOX EVO is the natural evolution of the FOX furnace, starting with the new 24-inch display, which enabled a complete redesign of the software interface. The result is a system that is now even more intuitive, complete, and designed to give operators simple and immediate control over every phase of the process.

But it’s in energy management and operational flexibility where FOX EVO truly makes a difference. Its intelligent architecture allows power and resources to adapt to the actual needs of production, eliminating waste and optimizing every cycle. It’s this ability to “do only what’s needed, when it’s needed” that allows glassmakers to work with effectiveness, efficiency, and full cost control.

efficiency, Power
and Measurable Savings

FOX EVO is also now fully compatible with the MEC ecosystem – Mappi Edge Computing, a system that provides operators with real-time production data in a clear and accessible way. With MEC INSPECTOR, it becomes possible to monitor every parameter of the production cycle, identify areas for improvement, and make faster, more informed decisions — enhancing both productivity and quality.

FOX EVO is also now fully compatible with the MEC ecosystem – Mappi Edge Computing, a system that provides operators with real-time production data in a clear and accessible way. With MEC INSPECTOR, it becomes possible to monitor every parameter of the production cycle, identify areas for improvement, and make faster, more informed decisions — enhancing both productivity and quality.

With FOX EVO, MAPPI confirms its vision for the future of glass tempering: uncompromising quality, real savings, and total process control — all in a simple and accessible way. It’s not just about producing tempered glass, but about doing it in the smartest and most sustainable way possible.

  • GALLERY

Mappi FOX
smarter (but smaller too)

Also our FOX series raises the bar in limiting consumptions through the use of coordinated MHS, ESS and ATI systems, a Mappi exclusive.

Fox is a series of compact ovens designed for the needs of medium-small glassware; ensures high quality and cost-effectiveness, even in small series machining. Each Fox includes all distinctive and proprietary innovation of Mappi technology.

Small heating modules, for precision heating and great flexibility, through a network of sensors.

A computerized system optimize consumption and reduce the peak of installed power.

An original design for the blowing system that allows a precise control while tempering.

Allows a perfectly syncronized movement of the ceramic rolls over the whole heating room.

Discover innovations

technical data

LOADING AREA1050x23001250x32001500x3200
mm1050x23001250x32001500x3200
inches41x9049x12660x126
PRODUCTIVITY | LOADS / HOUR
CLEAR GLASS
3mm252525
4mm242424
6mm161616
10mm999
19mm444
LOW.E
3mm232323
4mm191919
6mm131313
8mm999
10mm777
AVERAGE CONSUMPTION
kW/h115169233
PLANT DIMENSION
Lenght M/feet12 / 3916 / 5216 / 52
Width M/feet 2,3 / 7,53,5 / 11,54 / 13
Height M/feet2,3 / 7,52,3 / 7,52,3 / 7,5
